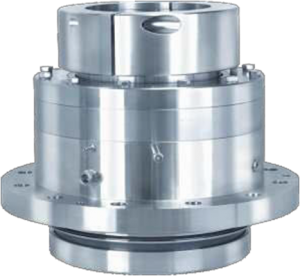

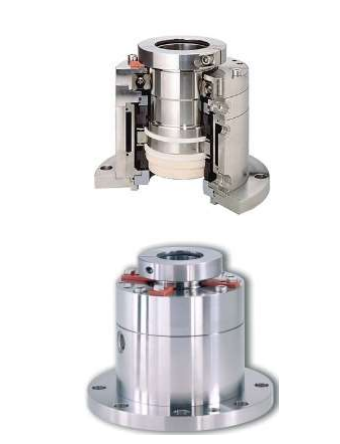

Double Reactor Seal For GLR
Seals are used to seal agitator, mixers and blender
As top, bottom and side entry drives and working with
The use of coolant and buffer fluid and applied in case
Of aggressive and hazardous media. These seals find app.
In various industries such as chemicals, petrochemicals,
Pharmaceuticals, Oil refineries, solvents, fertilizers and
others. It requires No shaft or sleeve step for balancing
Materials
Hardware SS316
Seal Ring TC / SiC / Carbon
Mating Ring SiC / TC
Secondary Seal PTFE / Kalrez / FKM / Chemraz
Operating Unit
Pressure Full Vaccum to 40bar
Temperature -40 to 280 C
Speed RPM subject to specification
Salient Features
Cooling jacket may help to maintain temperature.
Unit design for ease of installation.
Available with or without bearing.
Double Reactor Seal For SSR
Seals are used to seal agitator, mixers and blender
As top, bottom and side entry drives and working with
The use of coolant and buffer fluid and applied in case
Of aggressive and hazardous media. These seals find app.
In various industries such as chemicals, petrochemicals,
Oil refineries, solvents, fertilizers and others. It requires
No shaft or sleeve step for balancing.
Materials
Hardware SS316
Seal Ring TC / SiC / Carbon
Mating Ring SiC / TC
Secondary Seal PTFE / Kalrez / FKM / Chemraz
Operating Unit
Pressure Full Vaccum to 40bar
Temperature -40 to 280 C
Speed RPM subject to specification
Salient Features
Cooling jacket may help to maintain temperature.
Unit design for ease of installation.
Available with or without bearing.
Double Reactor Seal For MRD
Seals are used to seal agitator, mixers and blender
As top, bottom and side entry drives and working with
The use of coolant and buffer fluid and applied in case
Of aggressive and hazardous media. These seals find app.
In various industries such as chemicals, petrochemicals,
Pharmaceuticals, Oil refineries, solvents, fertilizers and
others. It requires No shaft or sleeve step for balancing.
Materials
Hardware SS316
Seal Ring TC / SiC / Carbon
Mating Ring SiC / TC
Secondary Seal PTFE / Kalrez / FKM / Chemraz
Operating Unit
Pressure Full Vaccum to 40bar
Temperature -40 to 280 C
Speed RPM subject to specification
Salient Features
Cooling jacket may help to maintain temperature.
Unit design for ease of installation.
Available with or without bearing.
